Description of controls and parts
Technical parameters
This is a powerful cash register in the form of a tablet with a 10.95" Full HD display, an octa-core processor and the Android operating system. You can very easily and quickly connect / disconnect the cash register from the supplied stand thanks to the magnetic mount. During normal use, the cash register is powered from the stand.
Technical parameters |
|
|---|---|
Display |
10.95" FHD (resolution 1920x1200 px), capacitive multi-touch |
Processor |
2x Arm Cortex-A76 2.2 GHz + 6x Arm Cortex-A55 2.0 GHz |
Memory / storage |
4 GB RAM / 64 GB ROM |
Operating system |
Android 13 |
Battery |
8,000 mAh (3.8 V / 30.4 Wh) |
Wireless connectivity |
Wi-Fi 802.11 a/b/g/n/ac (Wi-Fi 5), 2.4 GHz / 5 GHz; Bluetooth 5.2; NFC / GPS |
Camera |
13 MP (rear) + 2 MP (front) |
USB ports |
1x USB-C (with OTG) + 1x USB-C and 2x USB-A on the stand |
Memory card |
microSD (up to 1 TB) |
Speaker |
2x 1 W |
Power supply |
12 V / 1.6 A (from the stand) |
Dimensions |
257.2 × 168.8 × 9 mm |
Weight |
560 g |
Operating temperature |
-10 to +50 °C |
|
Always connect the cash register power supply to the USB-C port on the stand! If you connect the power supply directly to the cash register, the cash register will not detect connected peripherals such as the printer. |

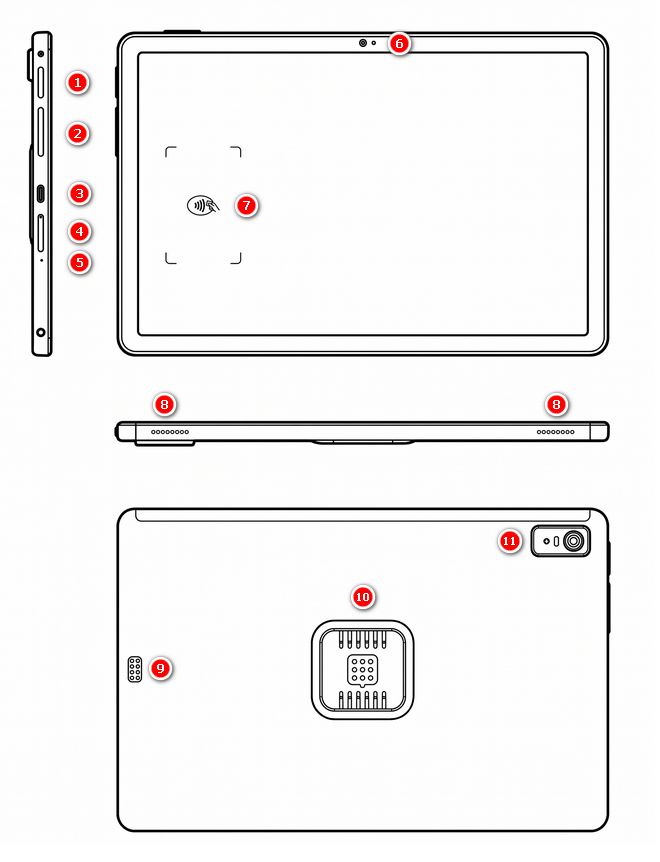

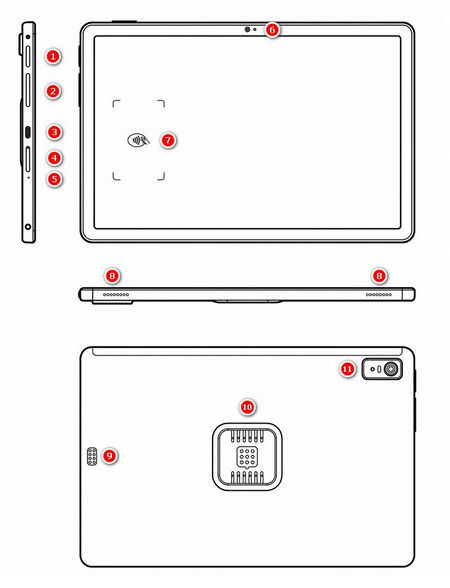

Description of controls and parts
|
Power button for switching the cash register on / off and putting it to sleep |
|
Volume button |
|
USB-C port (If you have the docking stand, do not use this port and connect the power supply to the USB-C port on the stand.) |
|
microSD card slot |
|
Microphone |
|
Front camera |
|
NFC area (NFC is currently not supported.) |
|
Speakers |
|
8-pin Pogo connector (not used) |
|
9-pin Pogo connector for connection to the docking stand |
|
Rear camera |

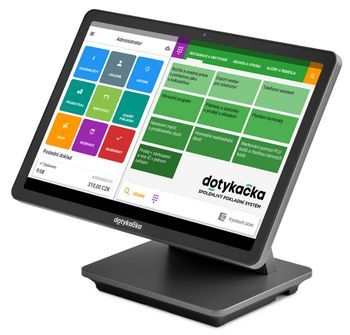

Docking stand
The cash register is supplied with a docking stand that serves as a desktop base. Using the magnetic connector, the tablet can be safely and quickly attached to the stand. The docking stand provides charging of the cash register and extends connectivity with two USB Type-A ports. Connect the power adapter to the USB-C port on the stand. Cash register peripherals such as a printer or barcode reader are then connected to the USB-A ports on the stand.
Technical parameters |
|
|---|---|
Connection to the tablet |
9-pin magnetic Pogo-type connector |
Ports |
1x USB-C (charging only), 2x USB-A (for connecting peripherals) |
Power supply |
Input: 100–240 V AC, Output: 12 V / 1.6 A |
